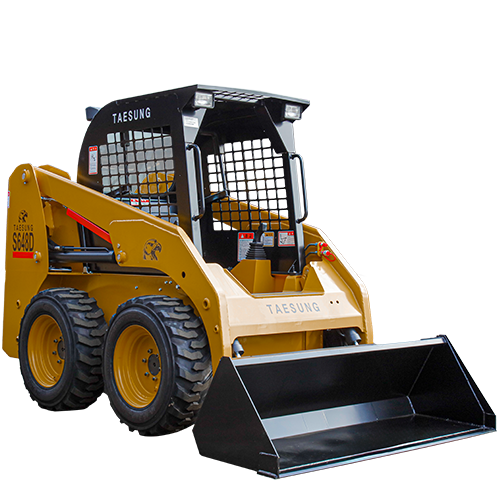

TAESUNG SKID LOADER 648D
Powerful Power and Compact Design,
Maximizing Operational Efficiency.
01
Automatic Parking Brake
Activates immediately when the safety bar is raised, perfectly securing the machine even on slopes, prioritizing operator safety.
02

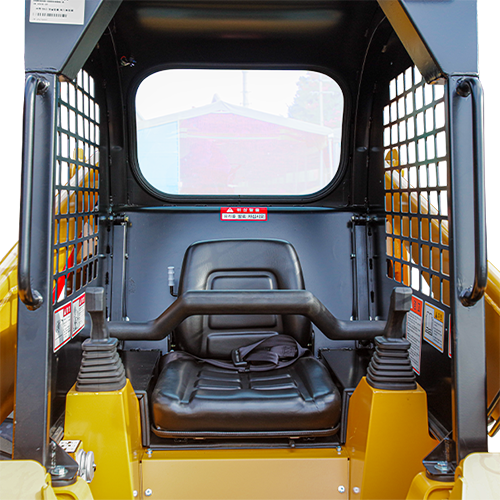

One-Touch Joystick Control
Reduces fatigue even during long operations through ergonomic joysticks that provide rapid response and smooth control.
03
Auxiliary Hydraulic System
Optimized for multi-purpose operations, allowing quick replacement of various attachments with simple quick-coupler and switch controls.
04

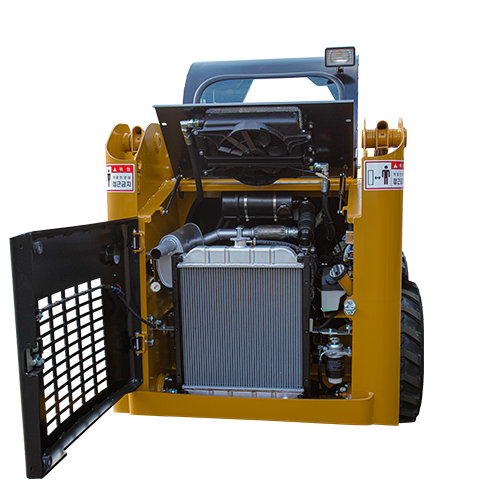

Open Canopy Design
Applies a tilt mechanism that allows the upper canopy to be fully opened, maximizing accessibility to key components and maintenance convenience.
05
Automatic Bucket Leveling
Automatically maintains the bucket's horizontal angle when the boom is raised, preventing load spillage and supporting safe transport.
Specifications (Model : 648D)
648D-Series
Engine & Driving Performance
- Manufacturer & Model DAEDONG 4A220T
- Max. Output 54 hp (40.3 kW) @ 2600 rpm
- Max. Torque 174.6 N-m @ 1700 rpm
- Cylinders / Displacement 4 / 2.2 L
- Travel Speed 10.5 kph (6.5 mph)
- Tire Size 10.00 x 16.5
Hydraulics & Operational Info
- Steering & Control Joystick
- Hydraulic Flow 69.3 L/min (18.3 gpm)
- Hydraulic Pressure 210 bar (3050 psi)
- Rated Operating Capacity 648 kg (1,429 lbs)
- Operating Weight 1,981 kg (4,367 lbs)
- Fuel Tank Capacity 40 L (8.9 gal)
Dimensions & Working Range
Overall Length (w/ bucket) 3,140 mm
Overall Width 1,518 mm
Overall Height (Canopy) 1,890 mm
Wheelbase 1,250 mm
Hinge Pin Height 2,851 mm
Dump Height / Reach 2,220 / 345 mm
Bucket Width 1,650 mm
Front Turning Radius 2,012 mm
* The above specifications may change without notice for performance enhancement.
