TAESUNG LOADER Powerful Performance,
Ultimate Operating Efficiency.

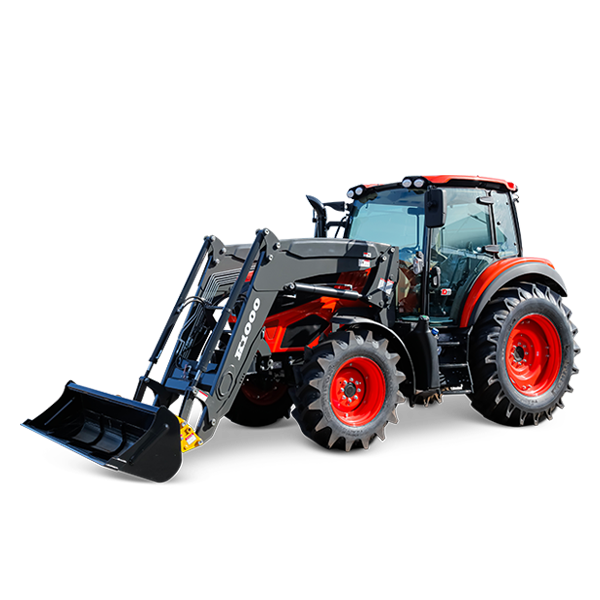

Product Design & Exterior

Provides maximum operational stability through robust construction and ergonomic design.

Core Functions

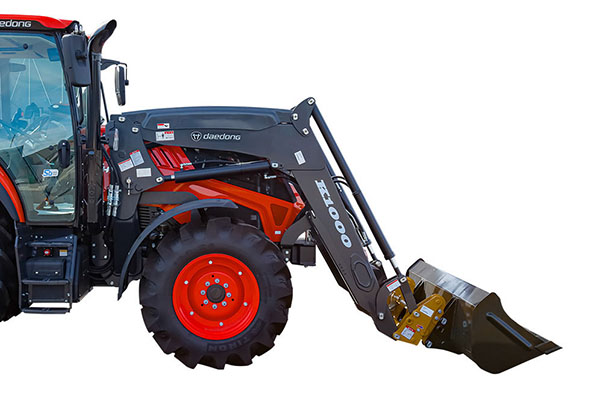

Powerful Bucket Capacity

Adopts a high-strength steel bucket, enabling quick and efficient material transport and loading operations.

Outstanding Durability

Utilizes optimal structural design and high-strength materials to deliver consistent performance even in harsh working environments.

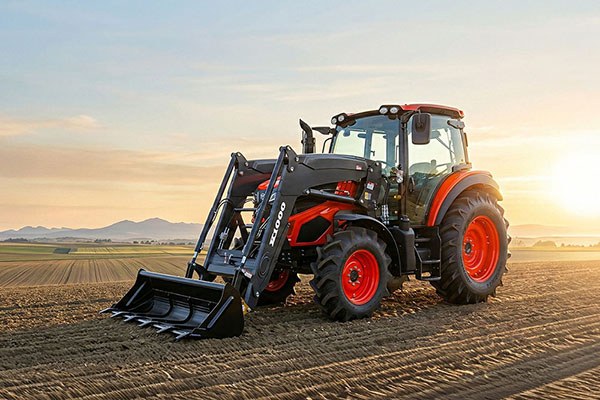

Precise Hydraulic Control

Enables exquisite operation through a state-of-the-art hydraulic system with fast and smooth response times.

Key Features

The flush-mounted design lowers the overall height, making it easy to secure visibility and boasting an elegant appearance.

Designed with user convenience in mind, allowing anyone to easily attach and detach the loader without the need for extra tools.

Enables safe attachment and detachment operations by leveling the equipment even on uneven ground.

Protects the equipment from shocks occurring during operation through overload prevention and floating functions.

Increases utility by allowing various implements such as grapples and pallet forks to be mounted via standardized quick couplers.

Technical Specifications

Standard Specifications K-Series

Loader Model	Unit	K1000	K1100	K2-400	K2-500	K2-600	K2-700	K2-800
Max. Lift Height to Pivot Pin	mm	3,880	4,128	2,651	2,815	3,287	3,430	3,554
Max. Lift Height under Level Bucket	mm	3,623	3,871	2,426	2,590	3,030	3,173	3,308
Clearance with Bucket Dumped	mm	3,027	3,275	1,926	2,100	2,435	2,577	2,704
Max. Dump Angle	°	70	70	69	62	69	72	67
Max. Rollback Angle	°	53	53	46	50	52	51	54
Digging Depth	mm	195	195	125	175	200	200	217
Bucket Depth	mm	622	622	535	535	535	535	622
Bucket Height	mm	561	561	575	575	575	575	561
Bucket Length	mm	814	814	692	692	692	692	814
Lift Capacity at Max. Height (Pivot Pin)	kg	2,315	2,321	988	1,161	1,753	1,620	2,073
Breakout Force at Pivot Pin	kgf	3,477	3,556	1,861	1,948	2,397	2,339	2,971
Rollback Force at Ground Line	kgf	2,733	3,322	1,406	1,878	1,929	1,911	2,669
Bucket Width	mm	2,300	2,300	1,400	1,600	1,800	2,000	2,100
Bucket Capacity (Heaped)	m³	0.62	0.62	0.34	0.39	0.44	0.49	0.56
Bucket Capacity (Struck)	m³	0.41	0.41	0.25	0.28	0.32	0.35	0.37
