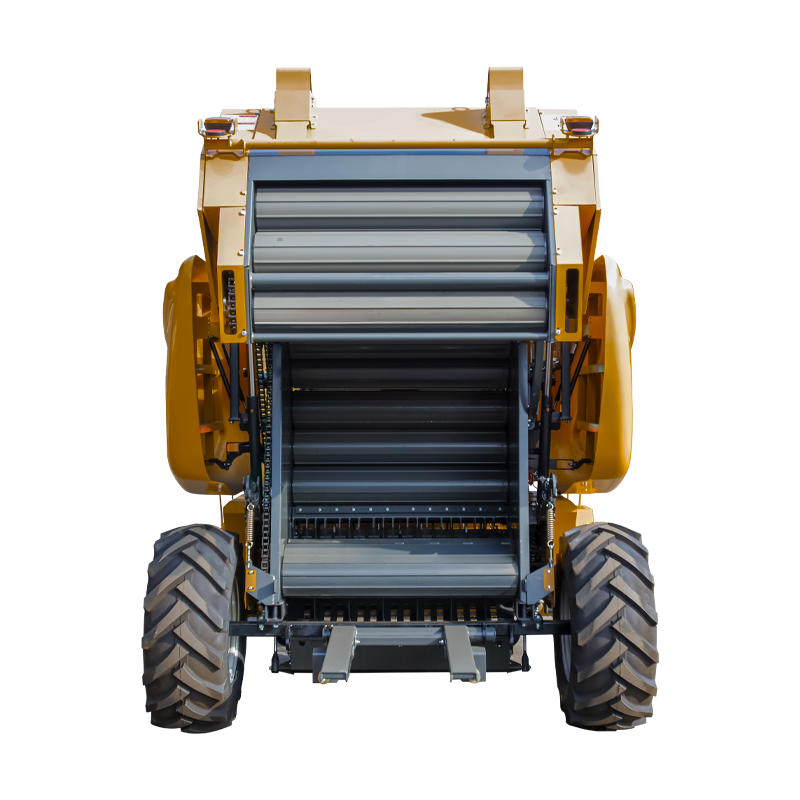

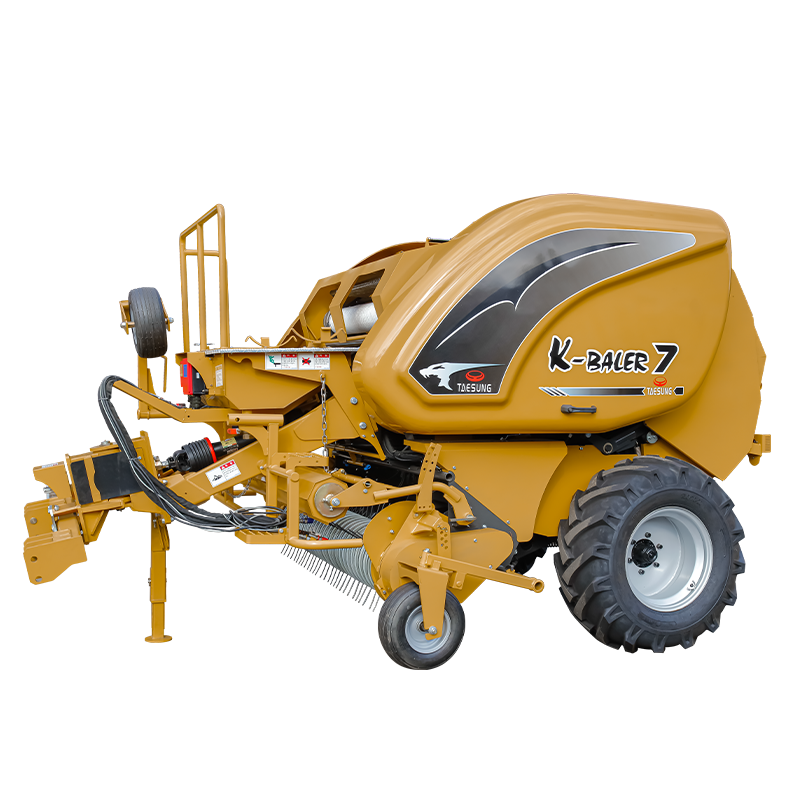

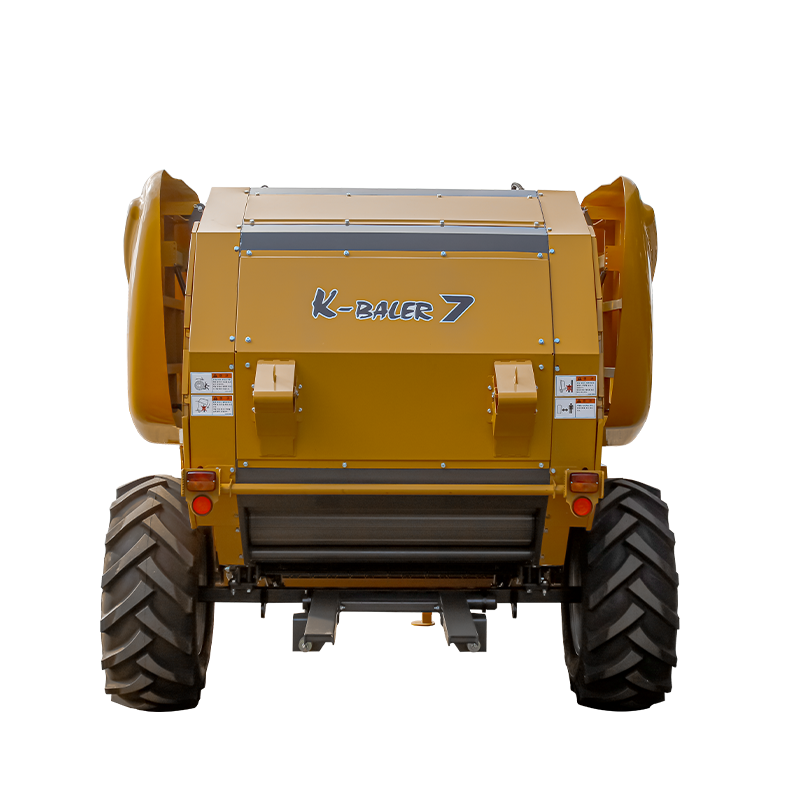

TAESUNG K-BALER 7S
Powerful Compression & Swift Operation,
The Perfection of Bale Formation.

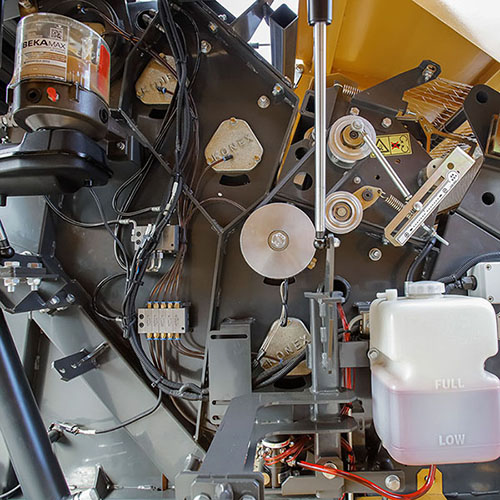

1. Automatic Lubrication System
Automatically supplies oil to bearings and chains, dramatically extending component life and reducing operational noise.

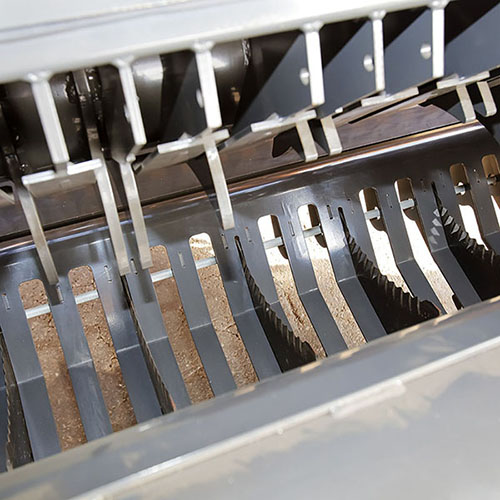

2. Soil-Cleaning System
Efficiently removes debris and soil introduced during operation, ensuring the production of uncontaminated, high-quality forage.

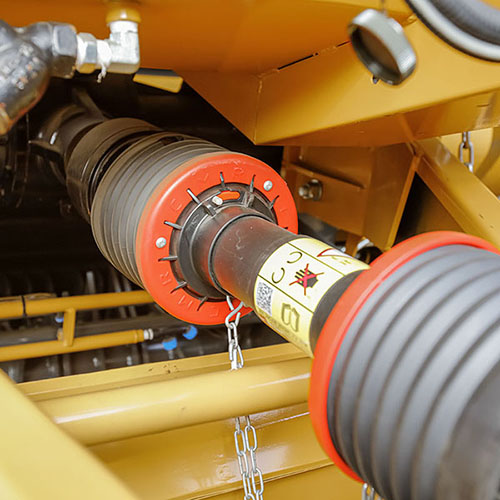

3. Power Separated Gearbox
A state-of-the-art gear system that optimizes power transmission efficiency and evenly distributes the load to enhance equipment durability.

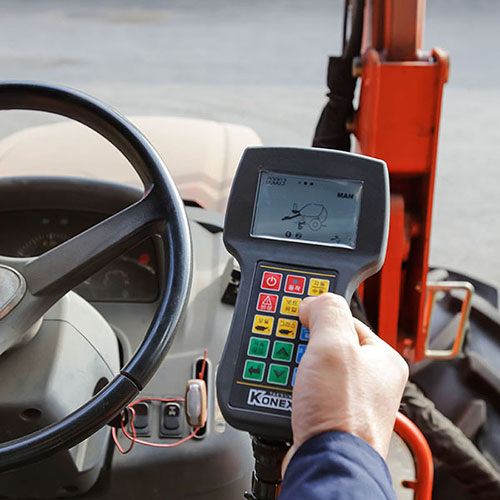

4. Self-Diagnosis LCD Remote Control
A smart control system capable of monitoring the operational status in real-time and providing immediate self-diagnosis in case of a malfunction.
5. Drawn Tube Chamber Roller
The core drive roller that realizes vibration-free and noise-free operation, enabling high-density bale formation with uniform, powerful pressure.
Specifications (K-Baler 7S)
Baler-Series
| Specification / Category | K-Baler 7S |
|---|---|
| Length (mm) | 4,050 |
| Width (mm) | 2,570 |
| Height (mm) | 2,360 |
| Weight (kg) | 3,200 |
| Bale Diameter (mm) | 1,250 |
| Bale Width (mm) | 1,230 |
| Required Tractor Power (HP) | 90 |
| Pick-up Width (mm) | 2,100 |
| Tine Bar (EA) | 5 X 28 |
| Cutter (EA) | 6 |
| Cutting Spacing (mm) | 192 |
| Chain Lubrication | Auto |
| Grease Lubrication | Auto |
| Roller Shaft Diameter (mm) | 40 |
| Others | S (Auto Steering) |
* The above specifications may change without notice for performance enhancement.
