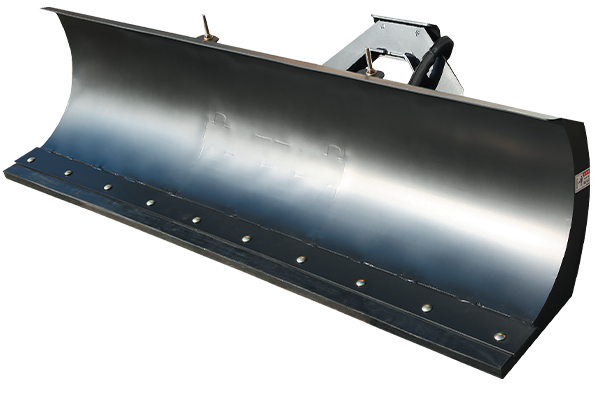

UTV SNOW BLADE
Safe Tilting and Precise Rotation,
Efficient Snow Removal for UTVs.
Enhanced Tilting Function for Safety
Equipped with a tilting function using high-elasticity springs to prevent UTV rollover and significantly improve operational safety during snow removal.
Dual Cylinder Left/Right Rotation
Designed to rotate ±25 degrees using two powerful hydraulic cylinders, enabling maximum efficiency for precise snow clearing.
Quick-Attach System for UTV
Features a user-centric design that allows anyone to easily and quickly mount or detach the equipment to a UTV without special tools, reducing prep time.
Wear-Resistant Structure
Built with a sturdy frame and highly durable cutting edges to withstand friction against rough surfaces, ensuring long-lasting performance.
Specifications (Model: UD 200)
Snow Blade-Series
| Item | UD 200 |
|---|---|
| Working Width | 1,660 mm |
| Blade Height | 600 mm |
| Rotation Angle | 50° (±25°) |
| Overall Width | 1,860 mm |
| Hinge Height | 300 mm |
| Weight | 115 kg |
| Drive System | Hydraulic Cylinder |
* The above specifications may change without notice for performance enhancement.
