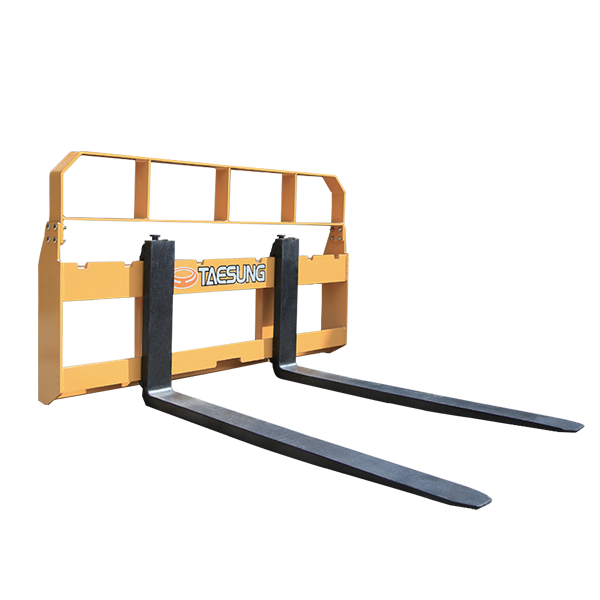

PALLET FORK Robust and Durable Multi-purpose Pallet Fork.
Robust Design & Quick Attachment
Built with a sturdy and durable frame structure, it allows for quick attachment and detachment, significantly reducing preparation time.
Multi-purpose Heavy Load Handling
Optimized for moving and storing heavy loads in farms and industrial sites with superior load distribution and stability.
Excellent Economy & Convenience
Even if damage occurs, the worn-out forks can be replaced individually without the need to replace the entire unit, ensuring economical operation.
Specifications (Model: SSH-L)
Attachment-Series
| Item | mm | Inch | Volume (m³) |
Weight (kg) |
|
|---|---|---|---|---|---|
| Overall Length | (mm) | 1,370 | 53.9" | 0.132 | 146 |
| Overall Width | (mm) | 1,510 | 59.4" | 0.155 | 164 |
| Overall Height | (mm) | 1,005 | 39.5" | 0.224 | 219 |
| Gripping Range | (mm) | 1,260 | 49.6" | 0.242 | 223 |
| Blade Length | (mm) | 535 | 21" | 0.306 | 255 |
| Pressure (190kg/cm²) | (ton) | 160 | 6.2" | 0.352 | 303 |
| Max Fork Width | (mm) | 1,172 | 46.1" | 0.39 | 317 |
* The above specifications are based on the catalog and may change without notice for performance enhancement.
