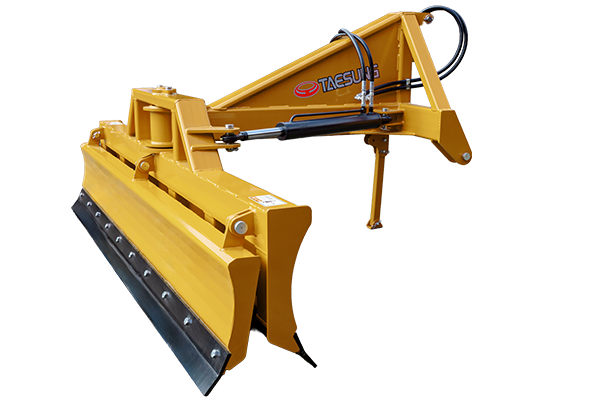

DOUBLE-BLADE GRADER
Forward & Reverse Operations,
High-Efficiency Double Blade.
Equipped with two hydraulic cylinders and a double-blade design, ensuring maximum efficiency even during reverse operations.
1
Forward & Reverse Operations

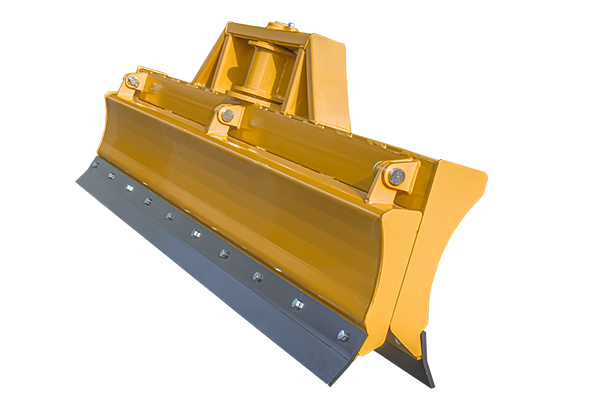

The double-blade design allows for consistent performance in both forward and reverse movements, more than doubling operational efficiency.
2

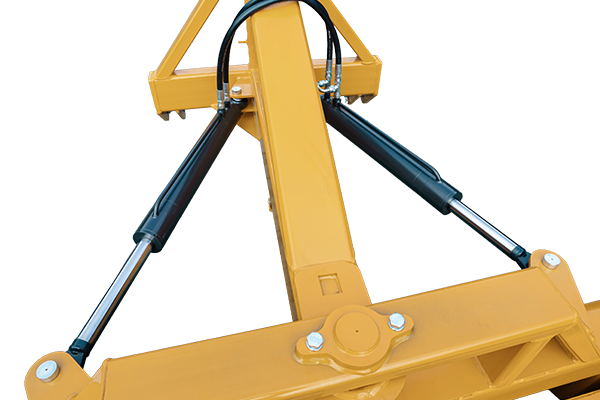

Powerful Dual Hydraulic Cylinders
Features two independently controlled hydraulic cylinders, providing powerful and precise angle adjustments for optimal clearing.
3
Versatile Surface Management
An optimized tool for tough environments, perfect for large-scale snow removal, livestock manure management, and unpaved road grading.
Specifications (Double-Blade TSG-W Series)
Implement-Series
| Model | Width (cm) |
Required Tractor Power (HP) |
Number of Cylinders |
|---|---|---|---|
| TSG-180W | 180 cm | Over 30 HP | 2 |
| TSG-210W | 210 cm | Over 50 HP | 2 |
| TSG-240W | 240 cm | Over 60 HP | 2 |
| TSG-270W | 270 cm | Over 70 HP | 2 |
| TSG-300W | 300 cm | Over 80 HP | 2 |
* The above specifications may change without notice for performance enhancement.
