FINISH MOWER
Precise Cutting and Perfect Results,

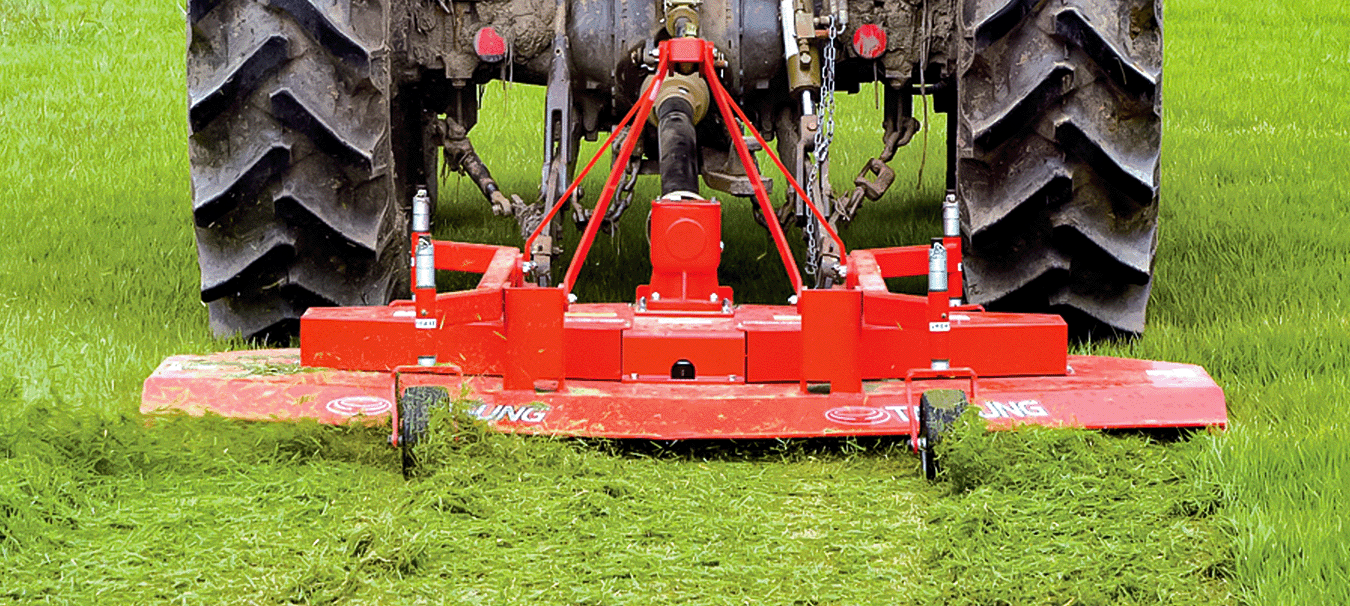

Rear-Mounted Finish Mower.
1
Quick Mounting System
Adopts an easily attachable 3-point hitch type, allowing for simple mounting on any tractor.
2
Sturdy Main Deck
Designed with a compact structure, it boasts excellent rigidity and durability despite its simple design.
3
Even Rear Discharge
Through the rear discharge format, grass is discharged evenly without clumping, eliminating the need for additional work.
4
Precise Height Adjustment
The cutting height can be precisely adjusted in stages to perfectly achieve the optimal grass cutting height.
5
Special Material Blades
Uses high-performance special materials to minimize blade wear even during prolonged operations in harsh environments.
6
Powerful Bevel Gearbox
Applies high-quality bevel gears to transmit powerful and stable rotational force without power loss.
Specifications (Model: KTM-Series)
Mower-Series
| Item | KTM 6010S | KTM 7210S | KTM 8410S |
|---|---|---|---|
| Cutting Width (Inch) | 60" | 72" | 84" |
| Overall Width (Inch) | 64" | 76" | 86" |
| Discharge Type | Rear Discharge | Rear Discharge | Rear Discharge |
| Weight (lbs) | 595 | 661 | 728 |
| Max PTO Power (HP) | Under 40 | Under 40 | Under 60 |
| Min PTO Power (HP) | 17 | 20 | 25 |
| Cutting Height (Inch) | 3/4 ~ 4 3/4 | 3/4 ~ 4 3/4 | 3/4 ~ 4 3/4 |
| Blade Size (Inch) | 2 3/8 x 20 7/8 x 1/4 | 2 3/8 x 25 x 1/4 | 2 3/8 x 28 3/4 x 1/4 |
| Blade Overlap (Inch) | 1 3/16 | 1 3/16 | 1 3/16 |
| Blade RPM | 2,160 | 2,160 | 2,160 |
| Hitch Type | Cat-1 | Cat-1 | Cat-1 |
* The above specifications may change without notice for performance enhancement.
