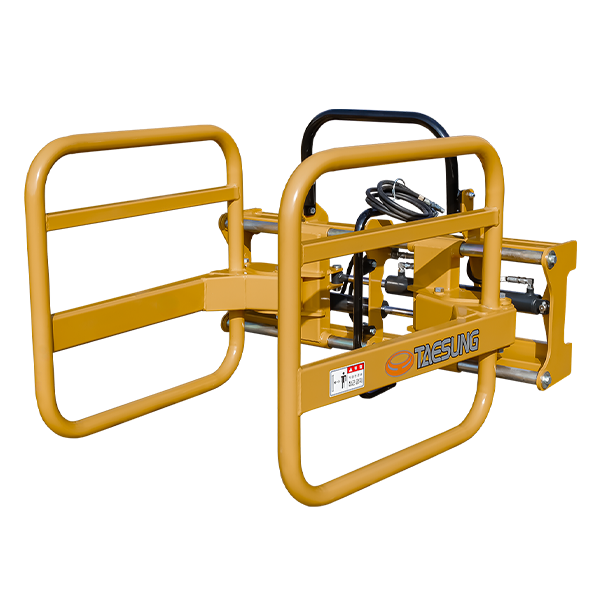

BALE GRAPPLE (SLIDE TYPE)
Dual-use for Round & Square Bales,
Perfect Gripping Power.
1
Round & Square Bale Compatible

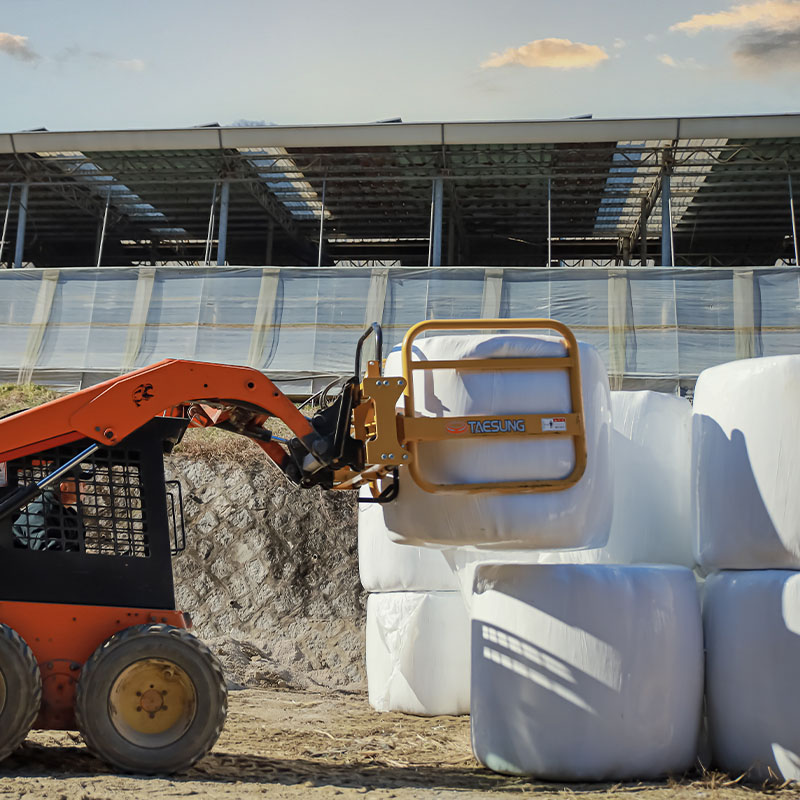

Enables versatile multi-purpose operations from transportation to efficient stacking.
2
Powerful 1-Ton Gripping Force
Equipped with dual hydraulic cylinders, it delivers overwhelming and stable gripping capability.
| Specifications | TSMG160 (Slide) |
|---|---|
| Overall Length | 1,315 mm |
| Overall Height | 950 mm |
| Overall Width | 1,555 mm |
| Weight | 205 kg |
| Gripping Range | 600 ~ 1,680 mm |
| Effective Wing Length | 950 mm |
| Wing Height | 1,000 mm |
| Applicable Bale Size | 1,000 ~ 1,500 mm |
| Loader Mounting Width | 830 ~ 1,250 mm |
* The above specifications may change without notice for performance enhancement.
