BALE GRAPPLE (ROUND TYPE)
Round Large/Medium Grapple,
Perfect Gripping Power.

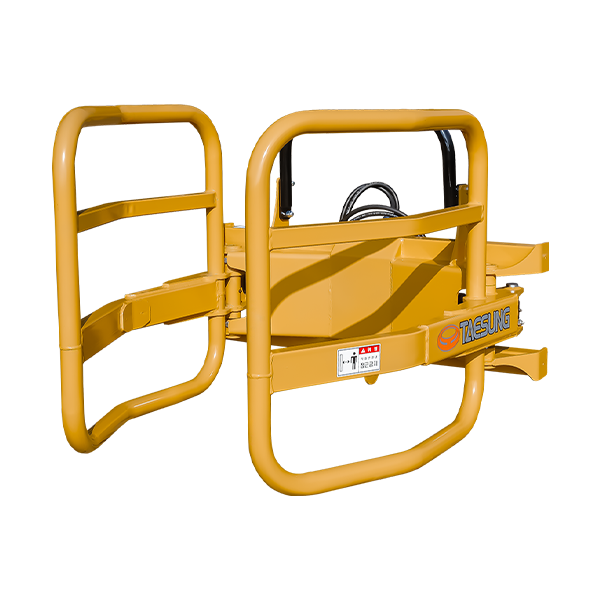

Round Bale Grapple(MG7-160C)

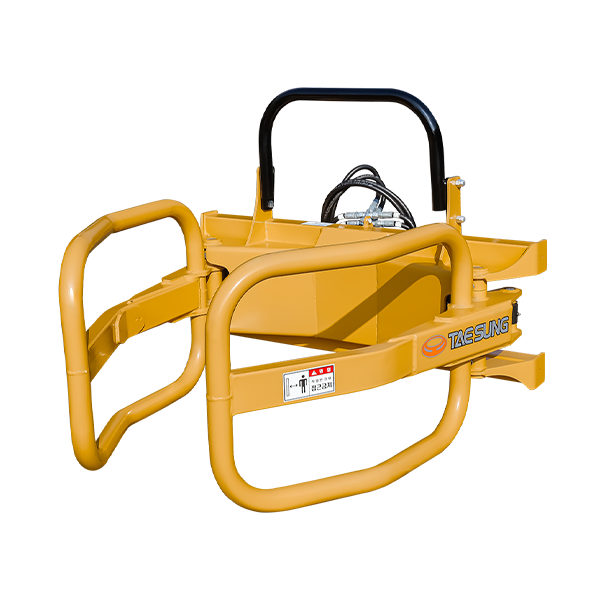

Round Bale Grapple(MG5-160C)
1
Round & Square Bale Compatible
Enables versatile multi-purpose operations from transportation to efficient stacking.
2
Powerful 1-Ton Gripping Force
Equipped with dual hydraulic cylinders, it delivers overwhelming and stable gripping capability.
| Specifications | MG7-160C (Round-Large) | MG5-160C (Round-Medium) |
|---|---|---|
| Overall Length | 1,250 mm | 1,250 mm |
| Overall Height | 1,000 mm | 1,000 mm |
| Overall Width | 1,180 mm | 1,180 mm |
| Weight | 185 kg | 135 kg |
| Gripping Range | 0 ~ 1,650 mm | 0 ~ 1,550 mm |
| Effective Wing Length | 1,000 mm | 940 mm |
| Wing Height | 1,000 mm | 670 mm |
| Applicable Bale Size | 900 ~ 1,300 mm | 800 ~ 1,300 mm |
| Loader Mounting Width | 900 ~ 1,220 mm | 900 ~ 1,220 mm |
| Bale Tiers | 2-Tier | 1-Tier |
| Compression Cylinders | 2 Units | 2 Units |
* The above specifications may change without notice for performance enhancement.
