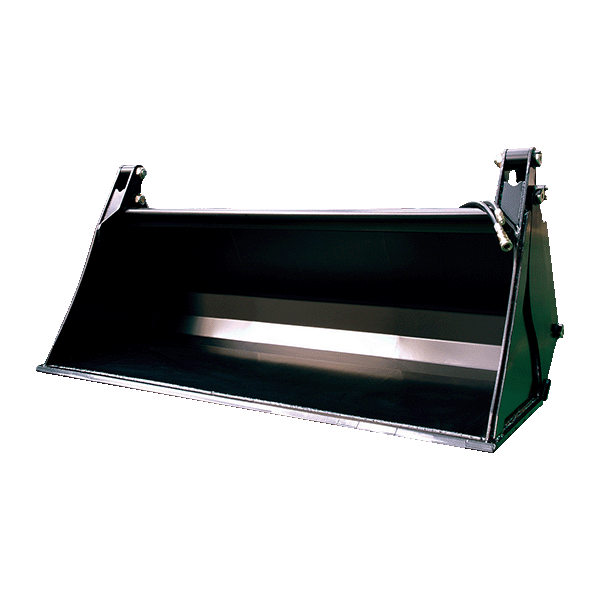

4-IN-1 BUCKET 4 Essential Functions in One Single Bucket.
4-in-1 Multi-purpose Functions
Based on standard loader bucket operations, it perfectly performs four essential functions including grabbing, grading, and material hauling with a single bucket.
Outstanding Operational Efficiency
The ability to switch between various tasks quickly without changing equipment significantly reduces work time and maximizes overall efficiency.
Robust Construction & Durability
Robustly designed with high-strength materials to deliver consistent performance even in harsh agricultural and industrial environments where various loads and impacts occur.
Specifications (Model: TFS, TFM, TFL)
Attachment-Series
| Model | Standard (mm) |
Inch | Volume (m³) |
Weight (kg) |
|---|---|---|---|---|
| TFS (Small Size) | 1,340 | 51" | 0.132 | 146 |
| 1,564 | 60" | 0.155 | 164 | |
| TFM (Middle Size) | 1,564 | 60" | 0.224 | 219 |
| 1,690 | 65" | 0.242 | 223 | |
| 2,122 | 82" | 0.306 | 255 | |
| TFL (Large Size) | 1,690 | 65" | 0.352 | 303 |
| 1,868 | 72" | 0.39 | 317 |
* The above specifications are based on the catalog and may change without notice for performance enhancement.
