TAESUNG BACKHOE
Powerful Digging Performance,
Swift and Perfect Task Completion.

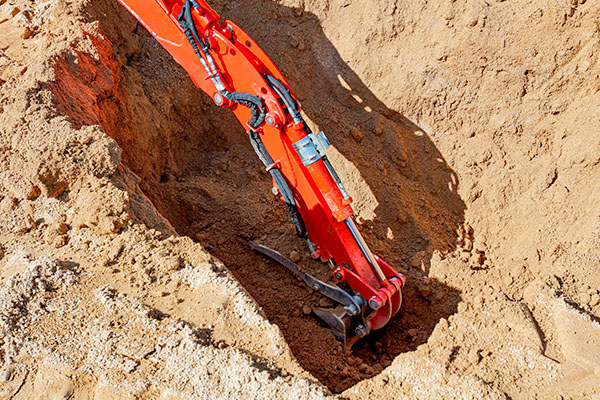

Efficient Operator's Seat & Precise Control
Applies an adjustable seat and ergonomic joystick levers to reduce operator fatigue and support precise digging operations even in narrow spaces.
180° Rotating Swing System
Secures a wide working radius through a swing post capable of 180-degree left and right rotation, and ensures safe movement and operation with a powerful hydraulic locking device.

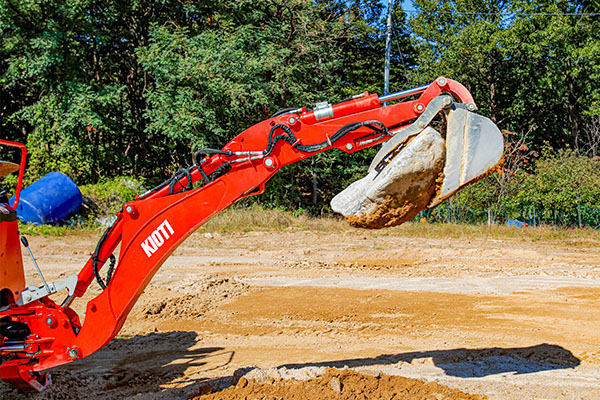

High-Strength Bucket & Powerful Digging Force
Demonstrates relentless digging performance even on hard ground through high-pressure cylinders and a robust arm structure designed to exert maximum torque.
Backhoe Series Specifications
TB-Series
| Item | TB-2100 | TB-3100 | TB-4100 | TB-5100 |
|---|---|---|---|---|
| Digging Depth | 1,840 mm | 1,830 mm | 2,119 mm | 2,253 mm |
| Max. Horizontal Reach | 2,668 mm | 2,877 mm | 3,211 mm | 3,461 mm |
| Max. Loading Height (Bucket 60°) | 1,510 mm | 1,708 mm | 1,920 mm | 2,585 mm |
| Tractor Leveling Angle | 8° | 10° | 11° | 11° |
| Loader Boom Rotation Angle | 150° | 180° | 180° | 180° |
| Backhoe Weight (Excl. Bucket) | 298 kg | 384 kg | 386 kg | 500 kg |
| Bucket Digging Force | 955 kgf | 1,278 kgf | 1,278 kgf | 1,700 kgf |
| Operating Pressure | 130 bar | 170 bar | 170 bar | 170 bar |
* The above specifications may change without notice for performance enhancement.
